Details:

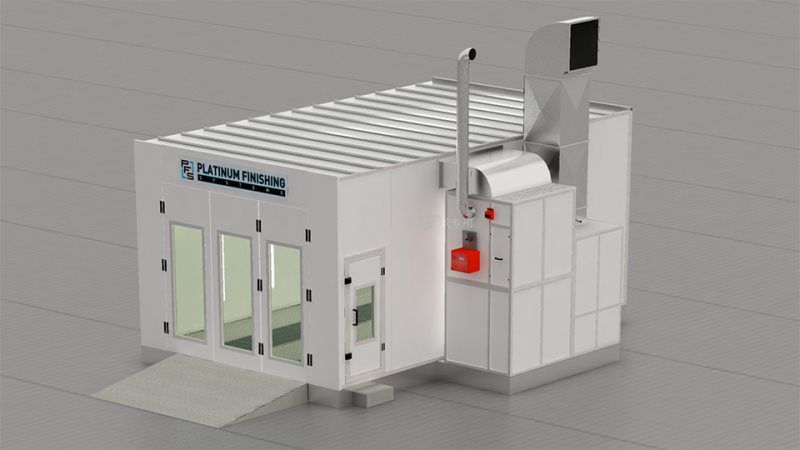

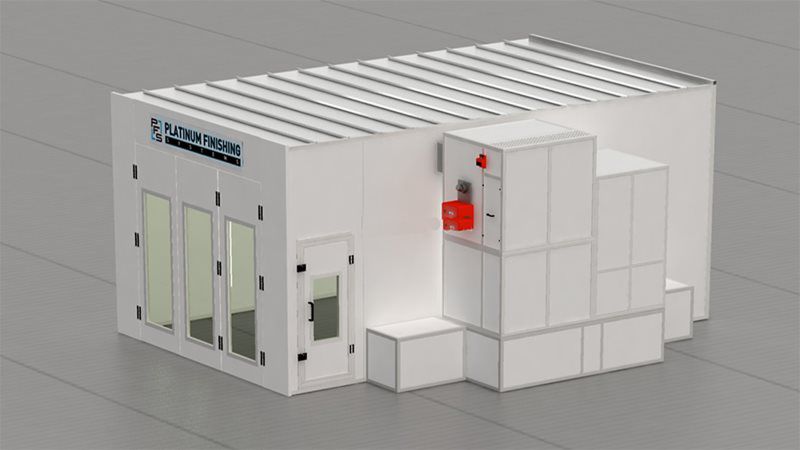

Our Platinum Edition heated side downdraft paint booth draws fresh air from outside and is heated after passing through filters in the air make up unit. The filtered air is pushed down and then exhausted on each side away from the center of the booth to the exhaust filters at floor level along the paint booth sides. This booth is also available with drive through doors as an option.

MESSAGE US FOR SHIPPING QUOTES!

FEATURES

Highlights

• 14' W x 9' H x 22' 9" L - interior dimensions

• 18'11" W x 11'1 1/2" H x 23' L - exterior dimensions

• 10' W x 9' H entrance doors

• 2-24" tube axial fans & 2- 3-phase - 1 hp motors with belts, pulleys & sheave - 10,000 - 12,000 CFM

• Air tight 18 gauge galvanized steel construction

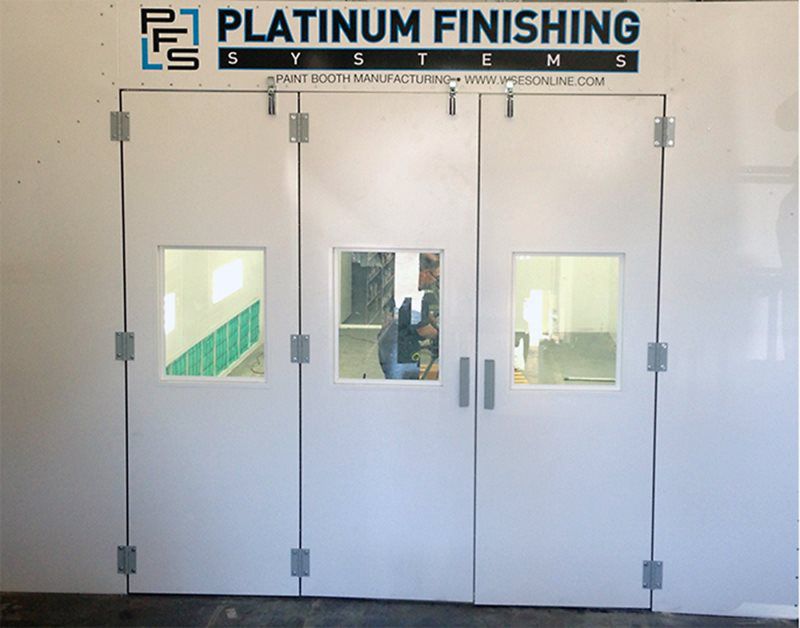

• Clear tempered glass in front and personnel doors

• 10-48" 4 tube fluorescent light fixtures

• Intake/exhaust filters/filter grids - 20" x 20"

• All hardware, fasteners, sealants

• Draft gauge

• Assembles in 2-3 days

• UL approved components

OPTIONS

Optional Add-on Features:

• 24" x 16' exhaust pkg (includes 2 pkg's)

• Single phase motor

• Additional light fixture with glass

• Additional 24" length

• Additional 44" length

• Additional 2' height

• 9' x 10' drive-through doors

• 11' x 10' front door height extension

• 11' x 10' drive-through door height extension

• White Powder Coated Finish (inside & out)

Mercury Air Make-Up Optional Features:

• Single phase motor

• Variable Frequency Drive

• Deluxe Digital Control Panel
