Single Skin Paint Booths

SORT BY

  • LOW - HIGH
  • HIGH - LOW
  • A - Z
  • Z - A

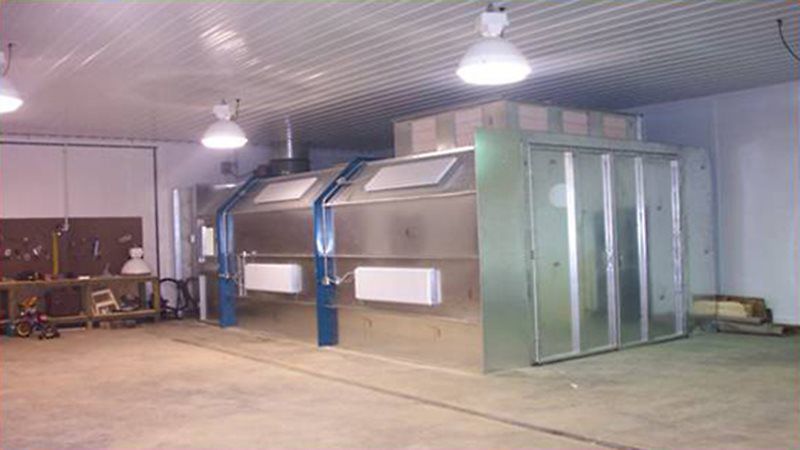

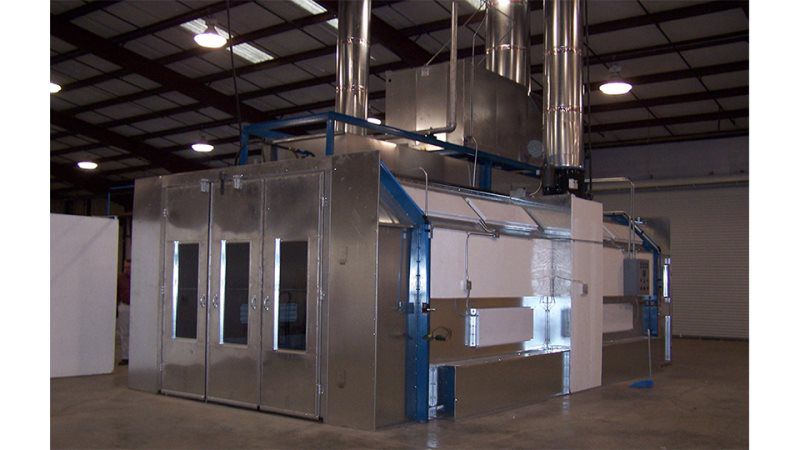

PFS Powder Side Single Wall

$12900.00

PFS Powder Side Single ...

$12900.00

General

Details:

The Powder Side Single  Wall Booth intakes fresh air from the cleaner upper levels of the shop through a filter bank in the ceiling of the booth. The filtered air is drawn down and away from the vehicle through exhaust filters at the floor level along both sides. This provides efficient overspray control that reduces prep time and also provides a much healthier workplace environment without an expensive downdraft exhaust pit. When purchased as a pressurized unit, the booth can be equipped with an air replacement unit and cure cycle to meet your requirements. It is available in both drive-through and solid-back designs.

TDDSE

24′

27′

Interior Dimensions

23’10″

26’10″

Exterior Dimensions

24’2″

27’2″

Lighting Output

4-Tube T4 Bulbs

Amount of Fixtures

12

12

Amount of Bulbs

48

48

Cabin Wall Design

Single Wall Powdercoated

Panel Orientation

Horizontal Panels

Mercury Heaters

M1 Horiz Roof Mounted Mech

BTU

1.0 MBTU/ 80% Recirc

CFM

13,000

13,000

Temperature Rise

90 deg. Spray / 180 deg. Bake

Pit Configuration 39″ Wide

n/a

Fan Configuration

Centrifugal Blower Unit

Intake Type

Direct Drive Blower

Motor

7.5 HP

7.5 HP

Exhaust Type

Direct Drive Blower

Motor

3 HP

3 HP
Features

Product Highlights

(1) 4-Tube, Class 1, Div 2, T-8 Light Fixtures (Interior Serviceable)

12′ Exhaust Duct Kit

Insulated Tri-Fold Doors

(11) 4-Tube T-8 Light Fixtures (Exterior Serviceable)

Powder Coated 18 Gauge Galvanized Steel Kits

Booth Mounted HHMA with 80% Recirculation
hidden field

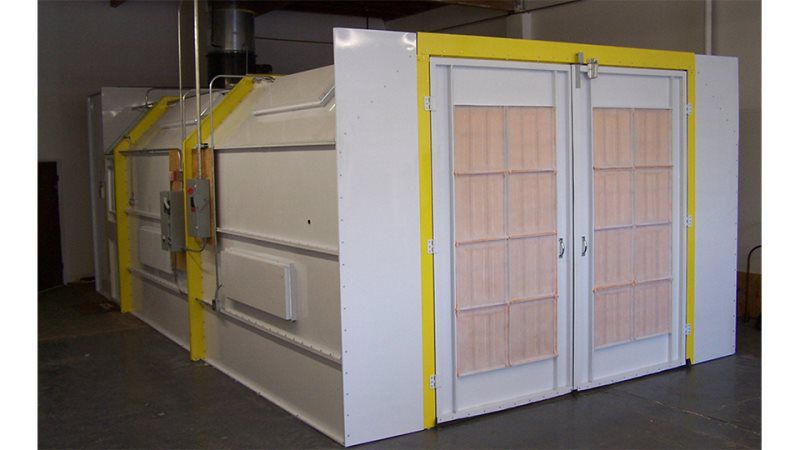

PFS Silver Edition Cross Flow Booth

$8600.00

PFS Silver Edition Cross...

$8600.00

General

Details:

Our Silver Edition Cross Flow Booth draws fresh air through filters in the drive in doors. This clean filtered air is pulled through the booth and then exhausts through a filter system on the other end. The PFS-FF24 model comes standard with an open style plenum arrangement verses a solid back wall plenum. This type of exhaust chamber gives greater inside working space while making efficient use of shop space. This also enables the addition of drive through doors to be added. The filtered exhaust air is pulled through the exhaust plenum and discharged straight up and into the atmosphere through an exhaust stack.(Optional Feature) We can customize to meet your requirements.

Features

Highlights

  • 14' W x 9' H x 26'6" L interior dimensions

  • 14'3" W x 9'1-1/2" H x 26'9" L exterior dimensions

  • 10' W x 9' H entrance doors

  • 34" tube axial fan with 3-phase - 3 hp motor - 13,965 CFM

  • Air tight 18 gauge galvanized steel construction

  • 10-48" 4 tube fluorescent light fixtures with clear tempered glass

  • 34" tube axial fan with 3-phase - 3 hp motor - 13,965 CFM

  • Air tight 18 gauge galvanized steel construction

  • 10-48" 4 tube fluorescent light fixtures with clear tempered glass

  • Draft gauge

  • Personnel door with clear tempered glassys

  • Intake/exhaust filters/filter grids - 20" x 20"

  • All hardware, fasteners, sealants

  • Assembles in 2-3 days

  • EXTRA LONG 26'6" WORKING LENGTH

  • We can customize to meet your requirements

  • UL approved component

Options

Optional Add-on Features:

  • 8' x 34" exhaust duct work package

  • Additional 4' section of exhaust ducting

  • ETL-listed NEMA 1 control panel

  • Single phase motor

  • Additional light fixture with glass

  • Additional 24" length

  • Additional 44" length

  • Additional 2' height

  • 9' x 10' drive-through doors

  • 11' x 10' drive-through door height extension

  • 11' x 10' front door height extension

  • White Powder Coated Finish (inside & out)

hidden field
PFS Silver Edition Semi Downdraft Booth

$8800.00

PFS Silver Edition Semi ...

$8800.00

General

Details:

Our Silver Edition Semi Downdraft Booth pulls fresh air from the cleaner upper levels of the working area and then pulled through a double set of filters in the ceiling on the drive in side of the booth. The filtered air is pulled down across the length of the booth, through a "Horseshoe" style plenum at the back and discharged straight up and into the atmosphere through an exhaust stack. This booth can come with drive through doors and is also available in a reverse flow design. A heated Air Make Up unit can be added to this booth with relative ease.

Features

Highlights

  • 14' W x 9' H x 26' 1/2" L - interior dimensions

  • 14' 3" W x 11' 1 1/2" H x 26' 9 1/2" L - exterior dimensions

  • 34" fan and 3 phase-3hp motor with belts, pulleys and sheave @ 13,965 CFM

  • 10' W x 9' H entrance doors

  • Double filtered air intake for cleaner spraying environment

  • Front doors with clear tempered glass

  • 2 light fixtures in rear of booth

  • All 18 gauge galvanized steel construction panels

  • All hardware, fasteners and sealants

  • Pre-filter, ceiling and 20" x 20" exhaust filters

  • 10 - 48" 4-tube light fixtures w/clear tempered glass

  • 1 personnel door with clear tempered glass

  • Draft gauge

  • Assembly instructions/permit package

  • We can customize to meet your requirements

  • We can customize to meet your requirements

  • UL approved components

Options

Optional Add-on Features:

  • 8' x 34" exhaust duct work package

  • Additional 4' section of exhaust ducting

  • ETL-listed NEMA 1 control panel

  • Single phase motor

  • Additional light fixture with glass

  • Additional 24" length

  • Additional 44" length

  • Additional 2' height

  • 9' x 10' drive-through doors

  • 11' x 10' drive-through door height extension

  • 11' x 10' front door height extension

  • White Powder Coated Finish (inside & out)
