DESCRIPTION

General

Details:

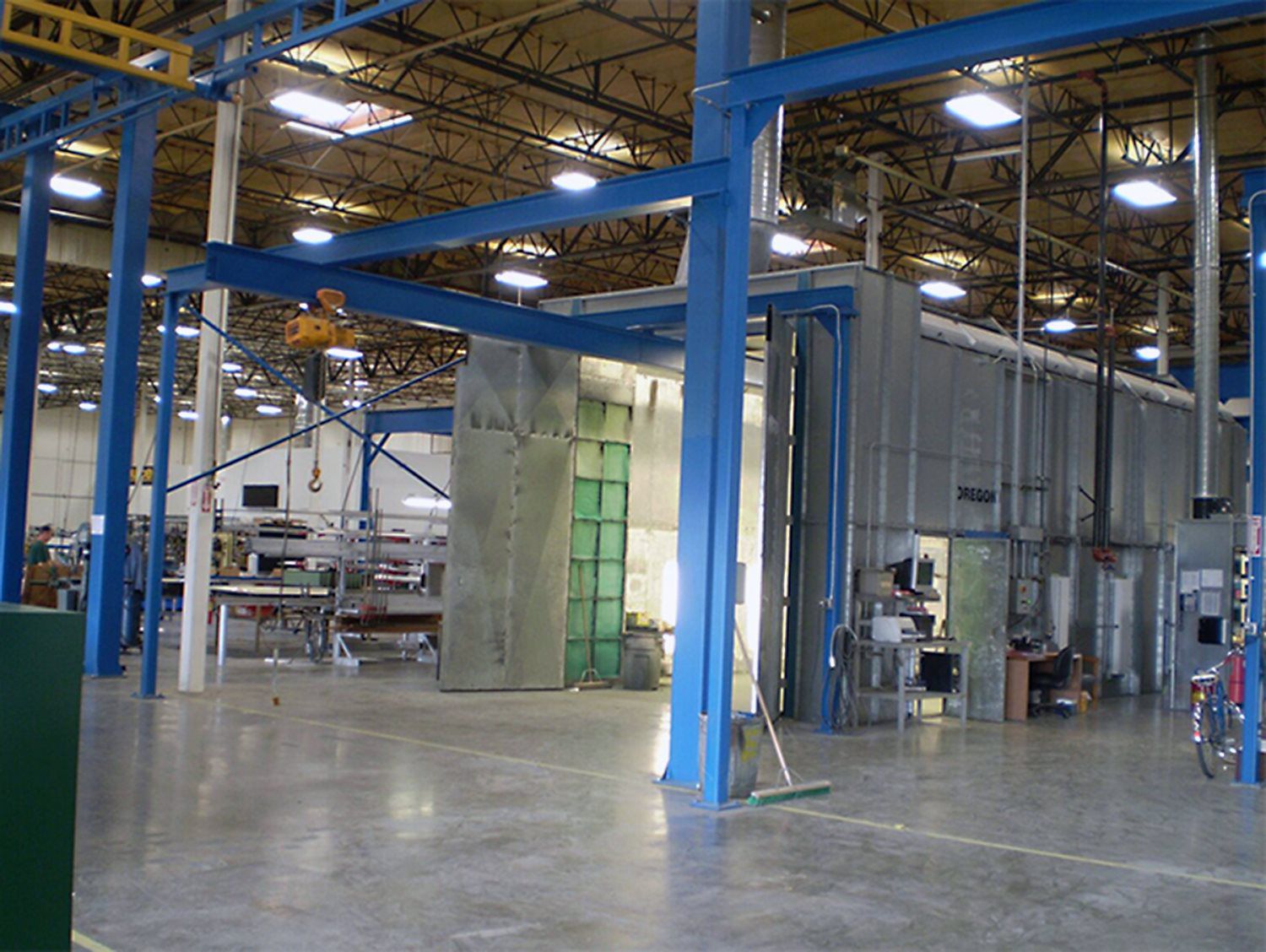

Our Silver Edition 50' Truck Cross Flow Paint Booth draws fresh air through filters in the drive-in doors. This clean filtered air is pulled through the booth and then exhausts through a filter system on the other end. The STCF-161650 model comes standard with a "Horseshoe" style plenum arrangement verses a solid back wall plenum. This type of exhaust chamber gives greater inside working space while making efficient use of shop space. This also enables the addition of drive through doors to be added. The filtered exhaust air is pulled through the exhaust plenum and discharged straight up and into the atmosphere through an exhaust stack.(Optional Feature) We can customize to meet your requirements.

MESSAGE US FOR SHIPPING QUOTES!

Features

Highlights

• Inside Dimension: 16' W x 16'2" H x 49'9" L

• Outside Dimension: 17' W x 16'8" H x 54' L

• 15' H x 11' W entrance doors

• 42" tube axial fan with 3-phase - 5 hp motor - 21,435 CFM

• Air tight 18 gauge galvanized steel construction

• 48" 4 tube fluorescent light fixtures with clear tempered glass

• Draft gauge

• Personnel door with clear tempered glass

• 48 - 20" x 20" intake and 56 - 20" x 20" exhaust filters & grids

• All hardware, fasteners and sealants

• Number of lights: 29 110V - 40W

• Fan motor Data: QTY: 1, Size: 42", 3 Phase 5HP Motor

• CFM: 21,435

• Personnel Doors: 1

Options

Optional Add-on Features:

• 8' x 42' exhaust duct work package

• Additional 4' section of exhaust ducting

• ETL-listed NEMA 1 control panel

• Single phase motor

• Additional light fixture with glass

• Additional personnel door

• Bi-fold doors

• Drive-through doors

• Add to Booth Width up to 22' Wide

• Add to Booth Height up to 22' High

• Add to Booth Length – Unlimited

• White Powder Coated Finish (inside & out)
