PFS Powder Side Single Wall
$12900.00
SKU: 1994699
DESCRIPTION
General
Details:

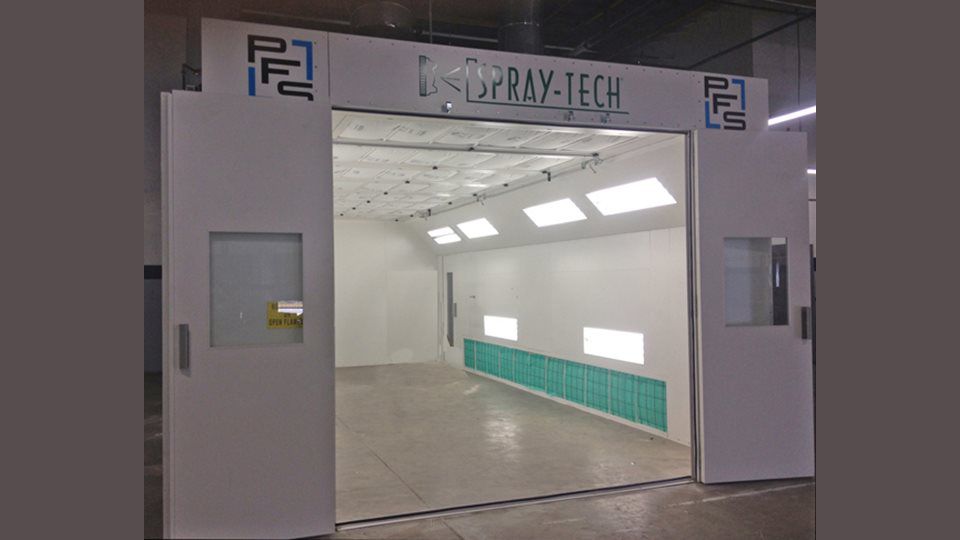

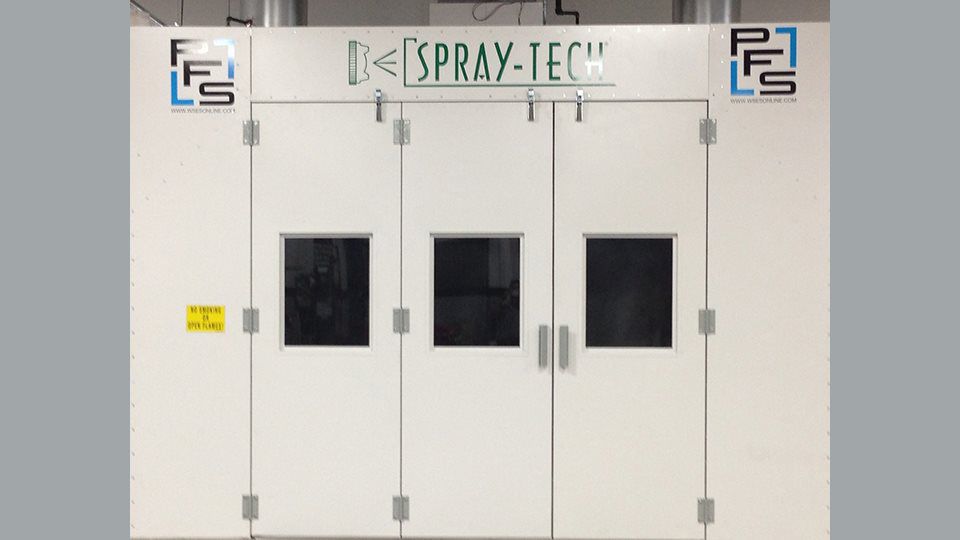

The Powder Side Single Wall Booth intakes fresh air from the cleaner upper levels of the shop through a filter bank in the ceiling of the booth. The filtered air is drawn down and away from the vehicle through exhaust filters at the floor level along both sides. This provides efficient overspray control that reduces prep time and also provides a much healthier workplace environment without an expensive downdraft exhaust pit. When purchased as a pressurized unit, the booth can be equipped with an air replacement unit and cure cycle to meet your requirements. It is available in both drive-through and solid-back designs.
|
TDDSE |
24′ |
27′ |
|
|
Interior Dimensions |
23’10″ |
26’10″ |
|
|
Exterior Dimensions |
24’2″ |
27’2″ |
|
|
Lighting Output |
4-Tube T4 Bulbs |
||
|
Amount of Fixtures |
12 |
12 |
|
|
Amount of Bulbs |
48 |
48 |
|
|
Cabin Wall Design |
Single Wall Powdercoated |
||
|
Panel Orientation |
Horizontal Panels |
||
|
Mercury Heaters |
M1 Horiz Roof Mounted Mech |
||
|
BTU |
1.0 MBTU/ 80% Recirc |
||
|
CFM |
13,000 |
13,000 |
|
|
Temperature Rise |
90 deg. Spray / 180 deg. Bake |
||
|
Pit Configuration 39″ Wide |
n/a |
||
|
Fan Configuration |
Centrifugal Blower Unit |
||
|
Intake Type |
Direct Drive Blower |
||
|
Motor |
7.5 HP |
7.5 HP |
|
|
Exhaust Type |
Direct Drive Blower |
||
|
Motor |
3 HP |
3 HP |
|
Features
Product Highlights
|
(1) 4-Tube, Class 1, Div 2, T-8 Light Fixtures (Interior Serviceable) |
12′ Exhaust Duct Kit |
|
Insulated Tri-Fold Doors |
(11) 4-Tube T-8 Light Fixtures (Exterior Serviceable) |
|
Powder Coated 18 Gauge Galvanized Steel Kits |
Booth Mounted HHMA with 80% Recirculation |
READ MORE
ADDITIONAL INFO
Weight: 2000 lbs
Category: Single Skin Paint Booths
