DESCRIPTION

General

Details:

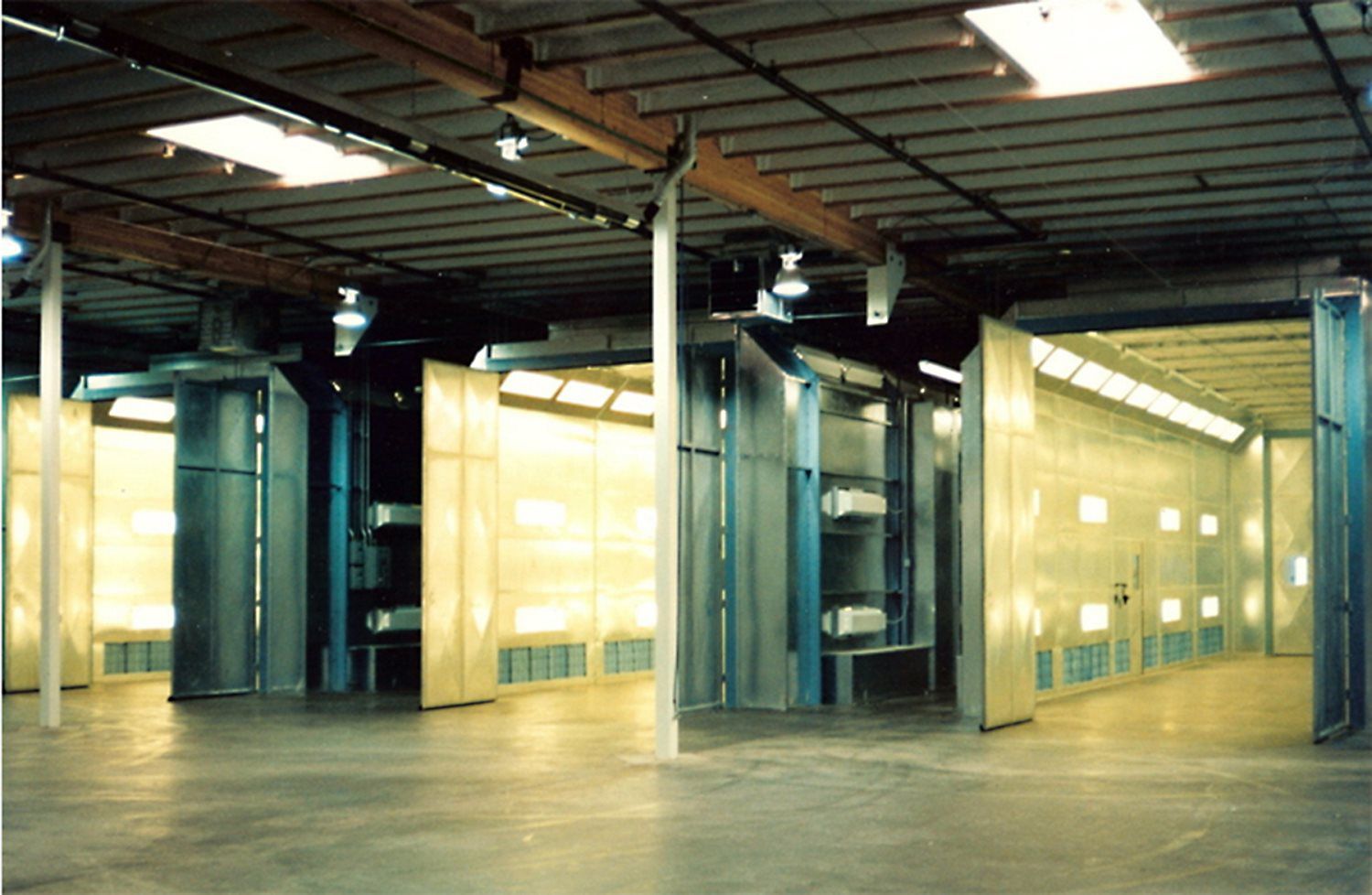

Our Silver Edition 44' Semi Downdraft Truck Booth pulls fresh air from the cleaner upper levels of the working area and then pulled through a double set of filters in the ceiling on the drive in side of the booth. The filtered air is pulled down across the length of the booth, through a "Horseshoe" style plenum at the back and discharged straight up and into the atmosphere through an exhaust stack.

MESSAGE US FOR SHIPPING QUOTES!!

Features

Highlights

• 16' W x 16'2" H x 39'9" L inside Dimensions

• 17' W x 18'5" H x 44' L outside Dimensions

• 42" tube axial fan with 3-phase 5 hp motor - 21,435 CFM non sparking blades

• 18 guage galvanized steel construction

• 48" 4 tube fluorescent light fixtures with clear tempered glass

• Draft gauge

• Personnel door with clear tempered glass

• 20" x 20" intake and exhaust filters & grids

• All hardware, fasteners & sealants

• 11'W x 15'H Doors

• We can customize to meet your requirements

• UL approved component

Options

Optional Add-on Features:

• 8' x 42' exhaust duct work package

• Additional 4' section of exhaust ducting

• ETL-listed NEMA 1 control panel

• Single phase motor

• Additional light fixture with glass

• Additional personnel door

• Bi-fold doors

• Drive-through doors

• Add to Booth Width up to 22' Wide

• Add to Booth Height up to 22' High

• Add to Booth Length – Unlimited

• White Powder Coated Finish (inside & out)

• Mercury 2.5 Mil BTU Air Make Up Unit

• Variable Frequency Drive

• Deluxe Digital Control Panel for Air Make Up Unit
