DESCRIPTION

General

Details:

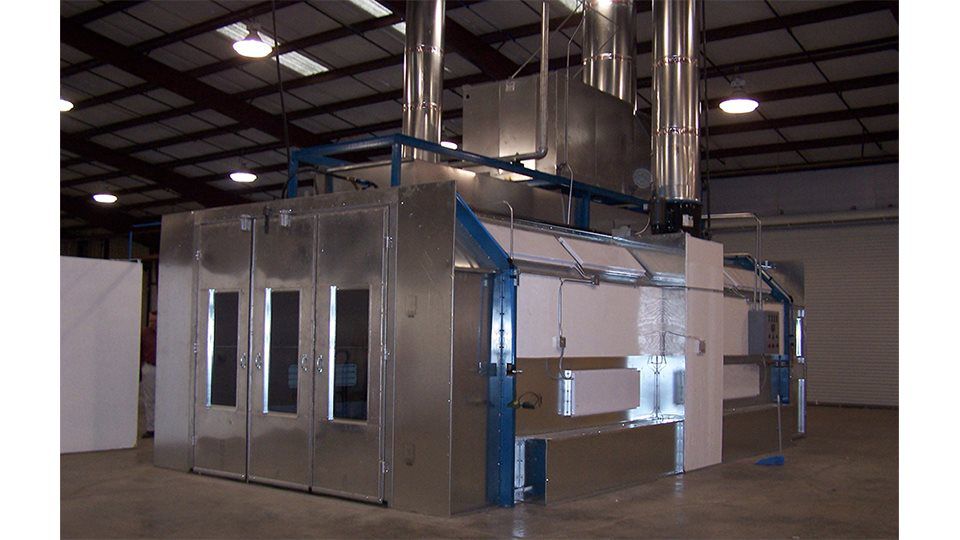

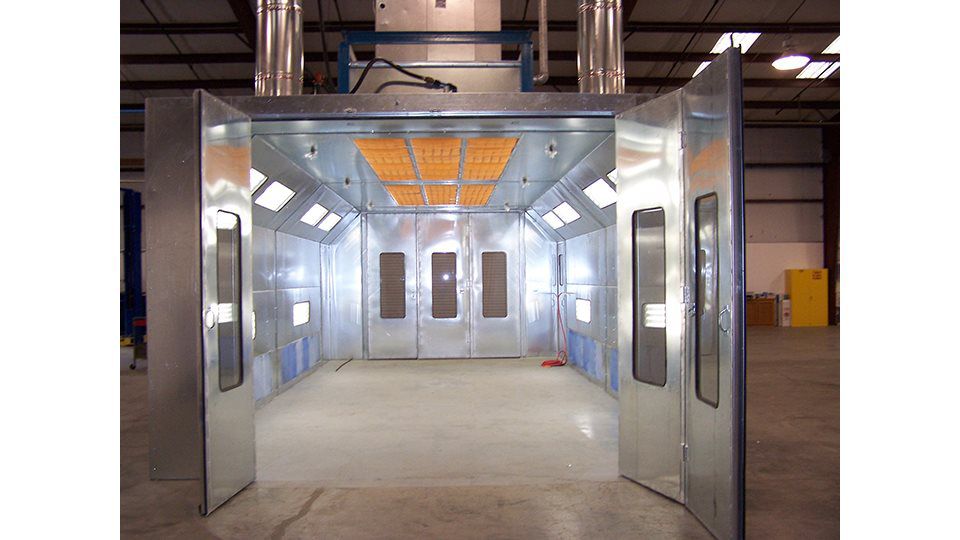

The side down draft paint booth draws fresh air through a double set of intake filters in the ceiling. The filtered air is pulled down and then exhausted on each side away from the center of the booth to the exhaust filters at floor level along the paint booth sides. This booth can come with drive through doors and is also available with a heated Air Make Up unit that can be added with relative ease.

Features

Highlights

• 14' W x 9' H x 22' 9" L - interior dimensions

• 18'11" W x 11'1 1/2" H x 23' L - exterior dimensions

• 10' W x 9' H entrance doors

• 2-24" tube axial fans & 2- 3-phase - 2 hp motors with belts, pulleys & sheave - 15,600 CFM

• Air tight 18 gauge galvanized steel construction

• Clear tempered glass in front and personnel doors

• 10-48" 4 tube fluorescent light fixtures

• Intake/exhaust filters/filter grids - 20" x 20"

• All hardware, fasteners, sealants

• Draft gauge

• Assembles in 2-3 days

• UL approved components

Options

Optional Add-on Features:

• 8' x 24" exhaust duct work package: (requires 2 pkgs)

• Additional 4' section of exhaust ducting

• ETL-listed NEMA 1 control panel

• Additional light fixture with glass

• Additional 24" length

• Additional 44" length

• Additional 2' height

• 9' x 10' drive-through doors

• 11' x 10' front door height extension

• 11' x 10' drive-through door height extension

• White Powder Coated Finish (inside & out)
