DESCRIPTION

General

Details:

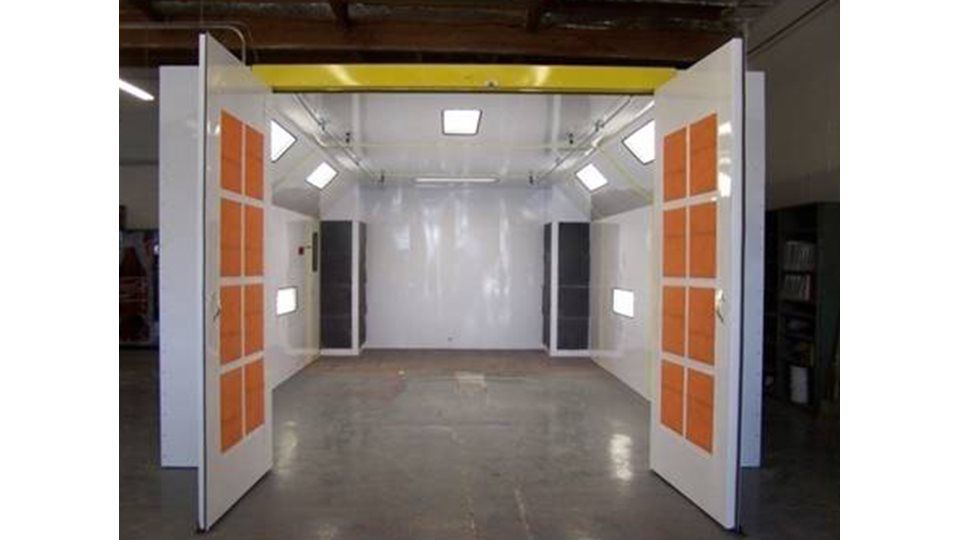

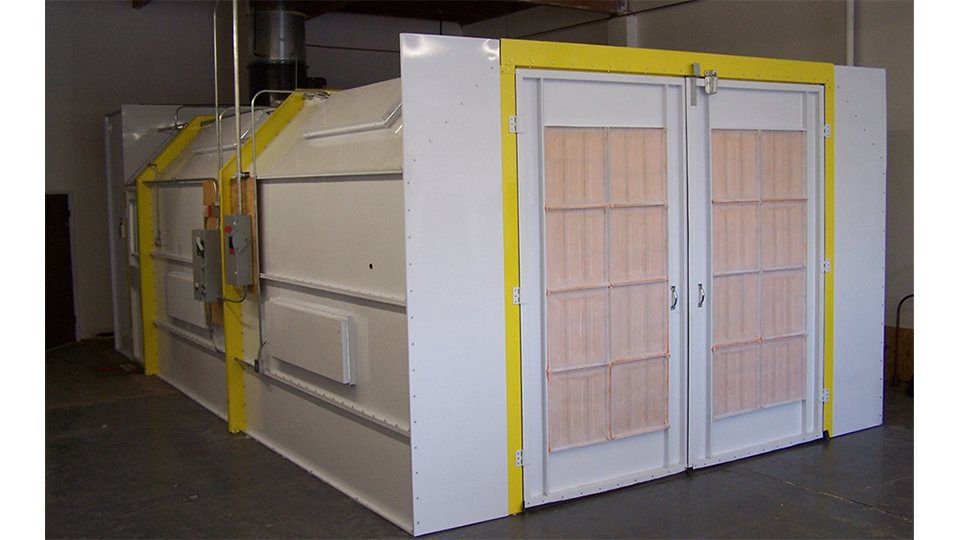

Our Silver Edition Cross Flow Booth draws fresh air through filters in the drive in doors. This clean filtered air is pulled through the booth and then exhausts through a filter system on the other end. The PFS-FF24 model comes standard with an open style plenum arrangement verses a solid back wall plenum. This type of exhaust chamber gives greater inside working space while making efficient use of shop space. This also enables the addition of drive through doors to be added. The filtered exhaust air is pulled through the exhaust plenum and discharged straight up and into the atmosphere through an exhaust stack.(Optional Feature) We can customize to meet your requirements.

Features

Highlights

• 14' W x 9' H x 26'6" L interior dimensions

• 14'3" W x 9'1-1/2" H x 26'9" L exterior dimensions

• 10' W x 9' H entrance doors

• 34" tube axial fan with 3-phase - 3 hp motor - 13,965 CFM

• Air tight 18 gauge galvanized steel construction

• 10-48" 4 tube fluorescent light fixtures with clear tempered glass

• 34" tube axial fan with 3-phase - 3 hp motor - 13,965 CFM

• Air tight 18 gauge galvanized steel construction

• 10-48" 4 tube fluorescent light fixtures with clear tempered glass

• Draft gauge

• Personnel door with clear tempered glassys

• Intake/exhaust filters/filter grids - 20" x 20"

• All hardware, fasteners, sealants

• Assembles in 2-3 days

• EXTRA LONG 26'6" WORKING LENGTH

• We can customize to meet your requirements

• UL approved component

Options

Optional Add-on Features:

• 8' x 34" exhaust duct work package

• Additional 4' section of exhaust ducting

• ETL-listed NEMA 1 control panel

• Single phase motor

• Additional light fixture with glass

• Additional 24" length

• Additional 44" length

• Additional 2' height

• 9' x 10' drive-through doors

• 11' x 10' drive-through door height extension

• 11' x 10' front door height extension

• White Powder Coated Finish (inside & out)
