DESCRIPTION

General

Details:

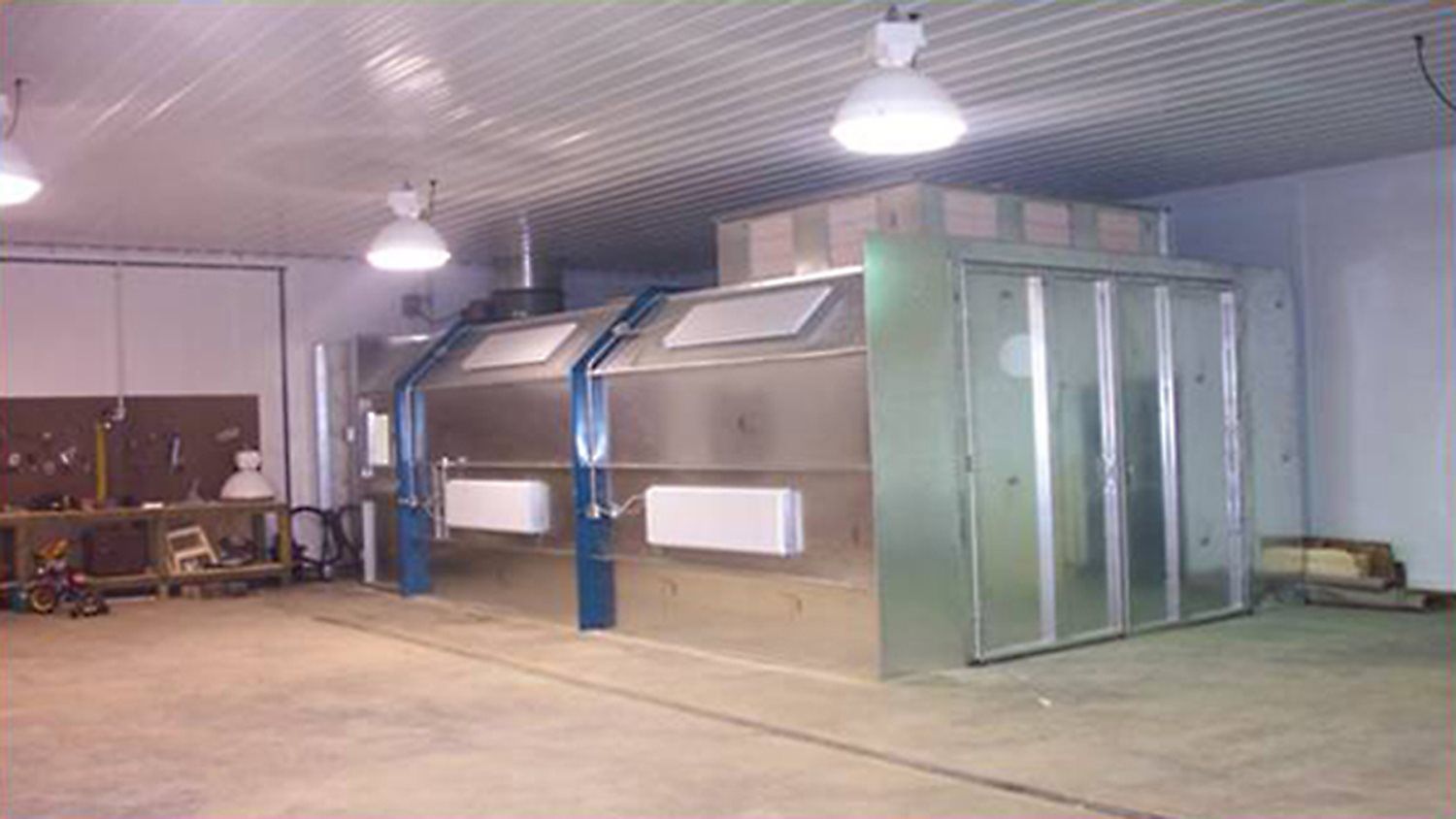

Our Silver Edition Semi Downdraft Booth pulls fresh air from the cleaner upper levels of the working area and then pulled through a double set of filters in the ceiling on the drive in side of the booth. The filtered air is pulled down across the length of the booth, through a "Horseshoe" style plenum at the back and discharged straight up and into the atmosphere through an exhaust stack. This booth can come with drive through doors and is also available in a reverse flow design. A heated Air Make Up unit can be added to this booth with relative ease.

Features

Highlights

• 14' W x 9' H x 26' 1/2" L - interior dimensions

• 14' 3" W x 11' 1 1/2" H x 26' 9 1/2" L - exterior dimensions

• 34" fan and 3 phase-3hp motor with belts, pulleys and sheave @ 13,965 CFM

• 10' W x 9' H entrance doors

• Double filtered air intake for cleaner spraying environment

• Front doors with clear tempered glass

• 2 light fixtures in rear of booth

• All 18 gauge galvanized steel construction panels

• All hardware, fasteners and sealants

• Pre-filter, ceiling and 20" x 20" exhaust filters

• 10 - 48" 4-tube light fixtures w/clear tempered glass

• 1 personnel door with clear tempered glass

• Draft gauge

• Assembly instructions/permit package

• We can customize to meet your requirements

• We can customize to meet your requirements

• UL approved components

Options

Optional Add-on Features:

• 8' x 34" exhaust duct work package

• Additional 4' section of exhaust ducting

• ETL-listed NEMA 1 control panel

• Single phase motor

• Additional light fixture with glass

• Additional 24" length

• Additional 44" length

• Additional 2' height

• 9' x 10' drive-through doors

• 11' x 10' drive-through door height extension

• 11' x 10' front door height extension

• White Powder Coated Finish (inside & out)
